Vertical flow clean bench

类别:

Vertical flow clean bench is a kind of clean bench, which is a kind of air purification equipment to provide local dust-free and sterile working environment. Its use has a good effect on improving the process conditions, improve product quality and increase the rate of finished products. Vertical flow clean bench is through the fan air into the pre-filter, through the static pressure box into the high-efficiency filter, the filtered air to vertical airflow state sent out. So that the operation area reaches a certain level of use, so as to ensure the production of environmental cleanliness requirements.

产品咨询

返回列表

详细信息

specificities

1. Cleanliness CLASS100 conforms to ISO1466-1 international standard.

2. Adopting adjustable air volume and low noise fan system to ensure that the wind speed in the working area is always in the ideal state.

3. The box body steel plate electrostatic spraying bright and smooth, the operating table surface is 304 stainless steel.

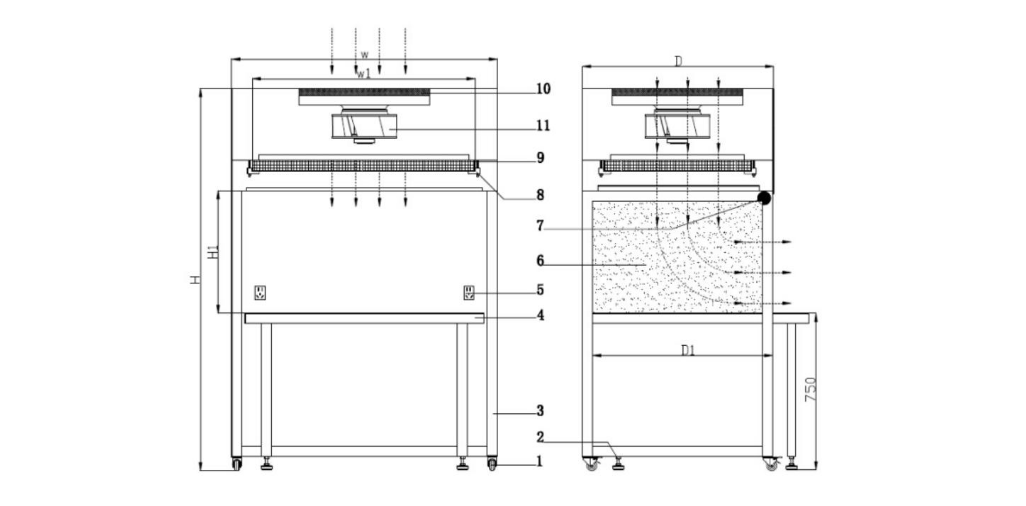

Vertical flow clean worktable description: 1.with brake casters peal foot cup 3.bracket 4.stainless steel table 5.socket 6.glass 7.fluorescent lamp 8.control switch 9.high efficiency filter 10.primary filter 11.fan

Technical parameters (common specifications)

model number	NMSJ-1000	NMSJ-1350	NMSJ-1640	NMSJ-1950
External Dimension(mm)	w1000xL650XH1750	W1350xL650XH1750	W1640xL650XH1750	w1950xL650XH1750
Air shower size(mm)	W820XL610XH600	W1270XL610XH600	W1560XL610XH600	W1870XL610XH600
Air volume (m/h)	90o	1100	1500	1800
Wind speed (m/h)	0.45m/s±20%
Purification level	Class 100 (ISO 14644-1 international standard)
High Efficiency Filter Efficiency	99.99%@0.3um
HEPA Filter Size	880X570x69	1170X570x69	915x570x69 610x570x69	915x610x69
Number of high-efficiency filters			1-1	2
Table vibration half-peak	The table and the overall frame are separated and vibration-free (optional).
Worktop Material	304 sanded stainless steel
noises	<50dB	<50dB	<50dB	<50dB
Noise test location	20cm from the front of the workbench, 1.2m above the ground.
Supply Voltage	220VAC 50Hz
Number of applicants		1-2	2-3	3-4

1、In case of changes in specifications and structure, the latest data provided by the company shall prevail.

2、The company accepts the order of the products which are not on the specification of the table.
