Horizontal Flow Clean Bench
类别:
详细信息
Applications:
Horizontal flow clean bench is widely used in electronics, national defense precision instruments, instrumentation, biological pharmaceutical products, food, aseptic microbiological testing, plant tissue culture inoculation and other industries that require a local clean working environment of the scientific research and production departments. It is a kind of air purification equipment which provides local high clean environment with strong generality, and its use has good effect on improving process conditions, improving product quality and increasing the rate of finished products.
Features:
1 Cleanliness CLASS100 in accordance with ISO1466-1 international standard.
2 The airflow is horizontal flow shape, open table, easy to operate.
3. Adopting adjustable air volume and low noise fan system to ensure that the wind speed in the working area is always in the ideal state.
4. The box body steel plate electrostatic spraying bright and smooth, the operating table surface is 304 stainless steel.

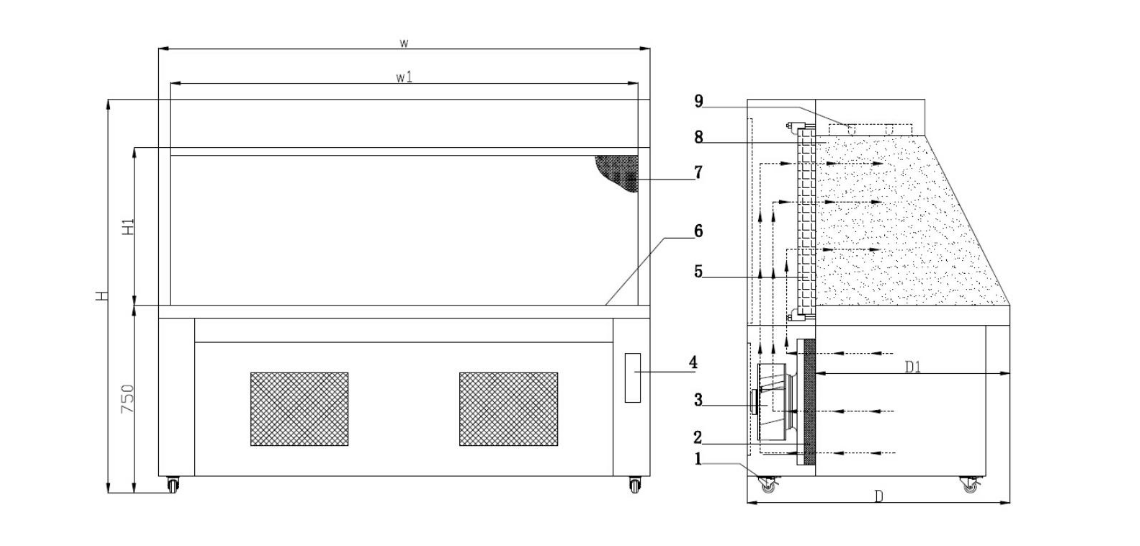

Horizontal flow clean bench configuration:
1.with brake casters 2 primary filter 3 centrifugal fan 4 control switch 5 high efficiency filter 6 stainless steel table 7 mesh diffuser 8 glass 9 fluorescent lamps electrostatic spraying bright and smooth, the operation of the table surface of 304 stainless steel
Technical parameters (common specifications)
| model number | NM-1000 | NM-1350 | NM-1600 | NM-1900 | |
| External Dimension(mm) | W1000xL740XH1460 | W1350xL740XH1460 | W1600xL740XH1460 | W1915xL740XH1460 | |
| Size of working area (mm) | w980XL480XH610 | W1285XL480XH610 | W1580XL480XH610 | W1880XL480XH610 | |
| Air volume (m/h) | 900 | 1200 1500 | 1800 | ||
| Wind speed (m/h) | 0.45m/s±20% | ||||
| Purification level | Class 100 (ISO 14644-1 international standard) | ||||
| High Efficiency Filter Efficiency | 99.99%@0.3um | ||||
| HEPA Filter Size | 915X610x69 | 1220X10x69 | 915x610x69 610X610x69 | 915X610x69 | |
| Number of high-efficiency filters | 1-1 | ||||
| Worktop Material | 304 sanded stainless steel | |||
| noises |
<50dB |
<50dB <50dB |
<50dB |
|
| Noise test location | 20cm from the front of the workbench, 1.2m above the ground. | |||
| Supply Voltage |
220VAC 50Hz |
|||
| Number of applicants |
1 |
1-2 |
2-3 |
3-4 |
1. In case of changes in specifications and structure, the latest data provided by the Company shall prevail.
2. The company accepts orders for products with specifications other than those listed in the table.
